Kia Sportage: Troubleshooting
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Body Electrical System / Power Windows / Troubleshooting
| Troubleshooting |
| 1. |

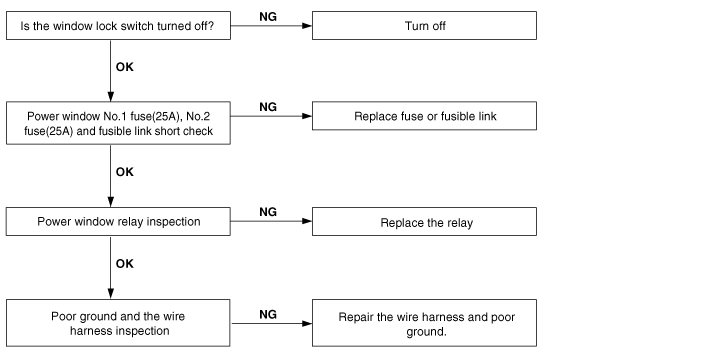

No windows operate from the main switch on the driver''s door.
|
| 2. |

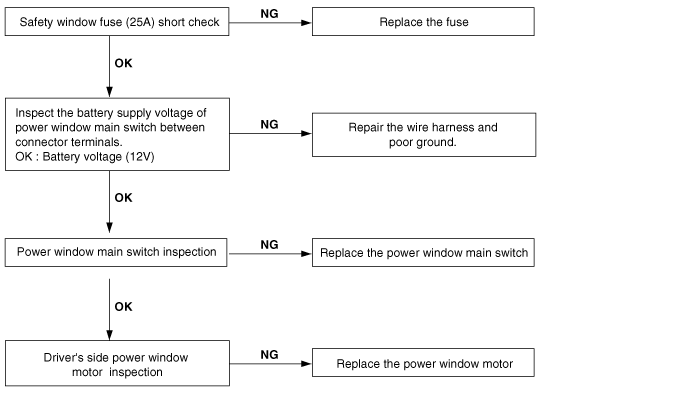

Driver''s side window does not operate.
|
| 3. |

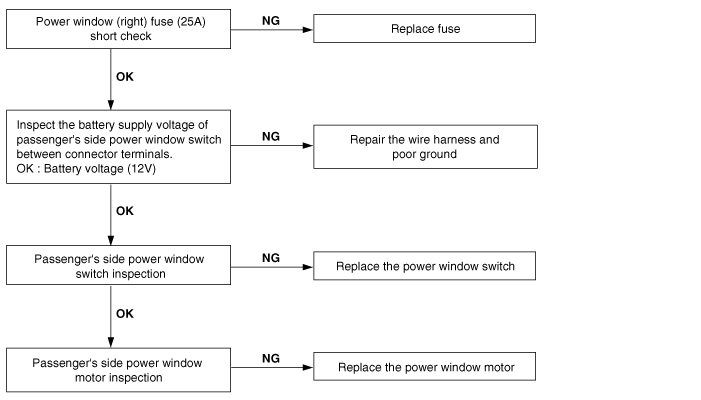

Passenger''s side window does not operate.
|
Power Window Switch: Repair procedures
Inspection
Main Power Window Switch Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim and power window switch.
(Refer to the BD group - "Front door") ...
