Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Restraint / Components and Components Location
| Components |

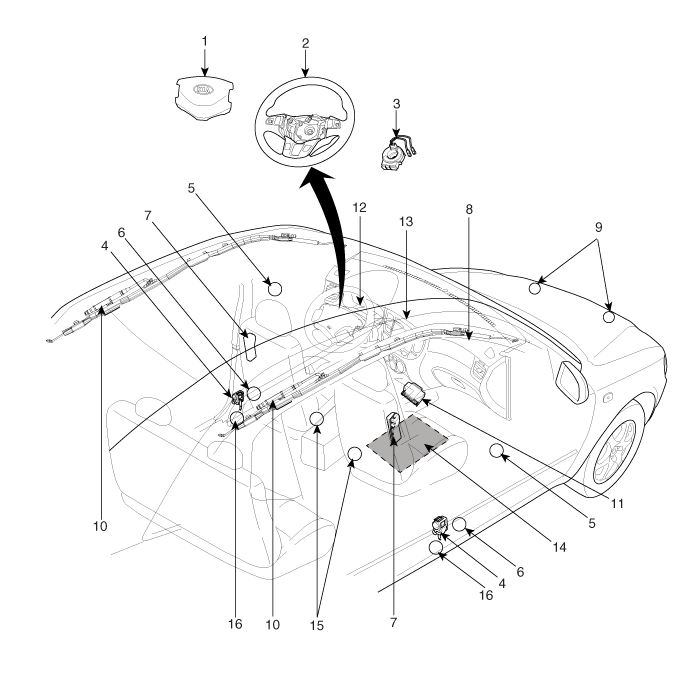

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side Airbag (SAB) 8. Passenger Airbag (PAB) | 9. Front Impact Sensor (FIS) 10. Curtain Airbag (CAB) 11. Supplemental Restraint System Control Module(SRSCM) 12. Airbag Warning Lamp 13. Telltale Lamp 14. Passenger Occupant Detecting System (PODS) 15. Belt Tension Sensor 16. Anchor Pretensioner (APT) |
| Components Location |

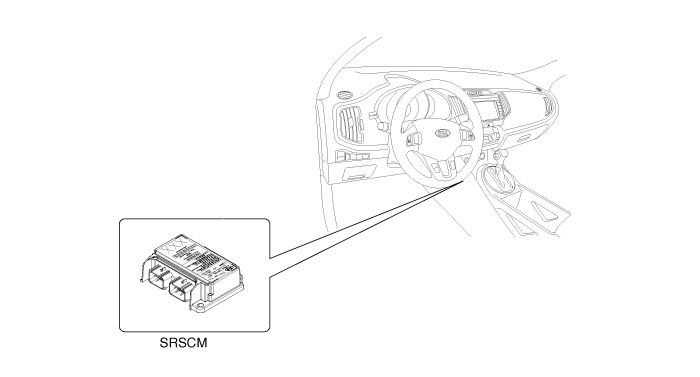

| Supplemental Restraint System Control Module (SRSCM) |

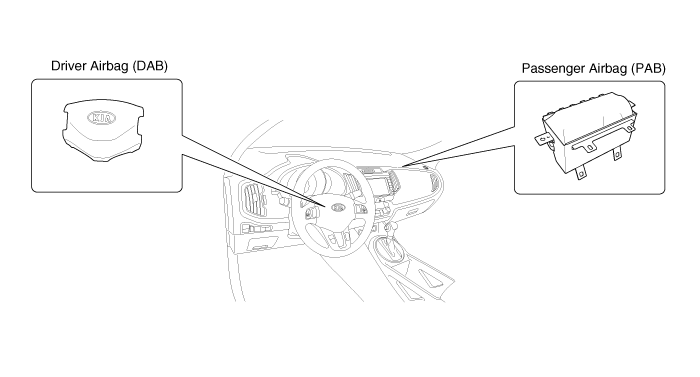

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

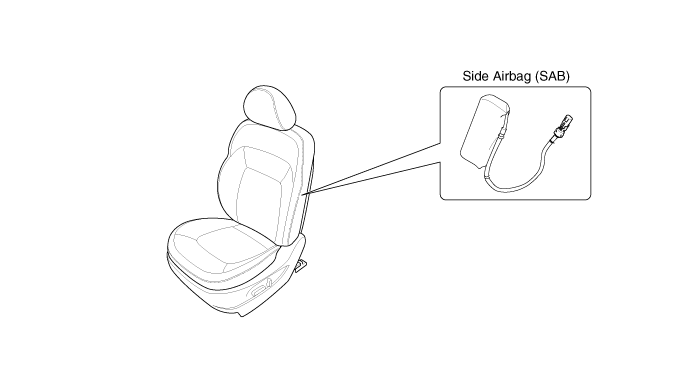

| Side Airbag (SAB) |

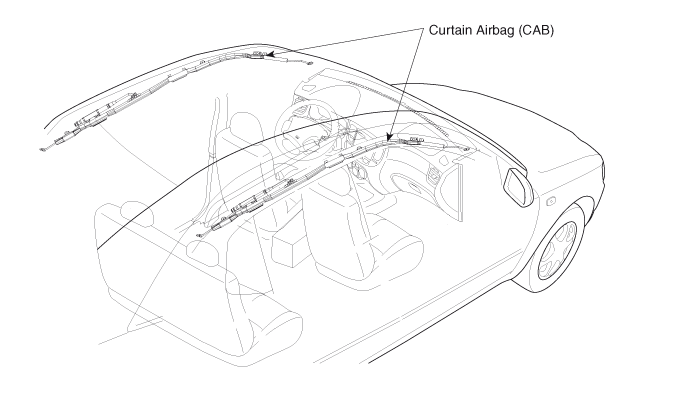

| Curtain Airbag (CAB) |

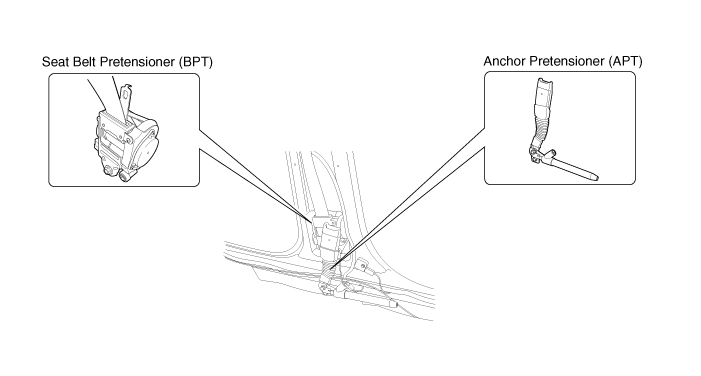

| Seat Belt Pretensioner (BPT)/ Anchor Pretensioner (APT) |

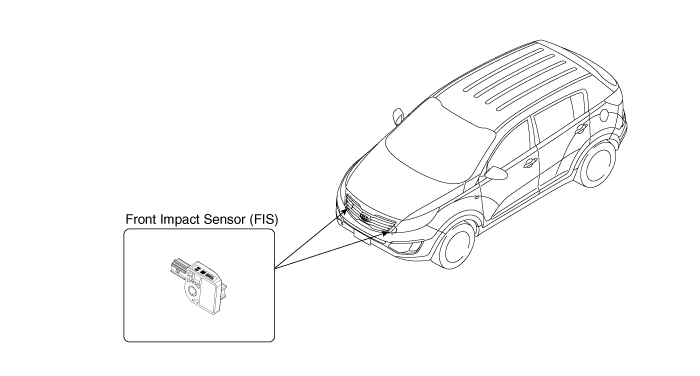

| Front Impact Sensor (FIS) |

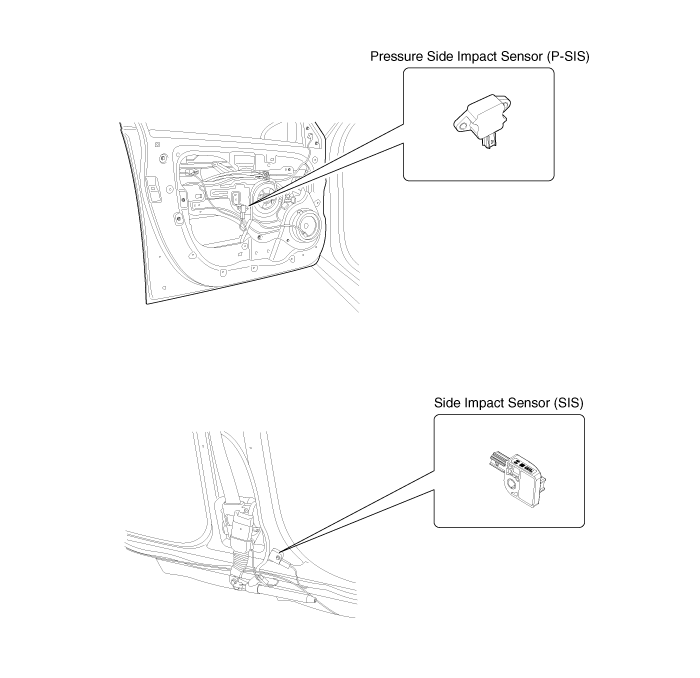

| Side Impact Sensor (SIS) |
