Kia Sportage: Components and Components Location
Third generation SL (2010–2016) / Kia Sportage SL Service & Repair Manual / Engine Control / Fuel System / Fuel Delivery System / Components and Components Location

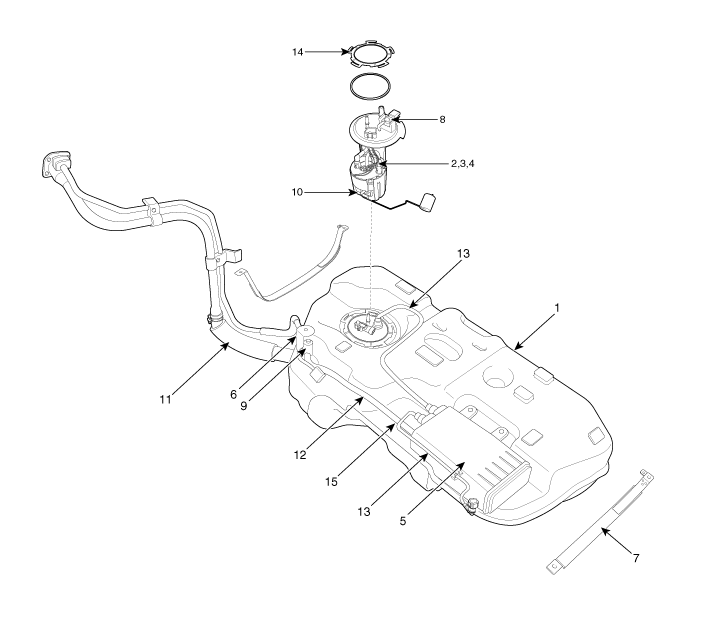

| Components Location |
| 1. Fuel tank 2. Fuel pump 3. Fuel filter 4. Fuel pressure regulator 5. Canister 6. Fuel tank air filter 7. Fuel tank band | 8. Fuel tank pressure sensor (FTPS) 9. Canister close valve (CCV) 10. Fuel level sensor (FLS) 11. Fuel filler hose 12. Ventilation hose 13. Vapor tube 14. Fuel pump locking ring |

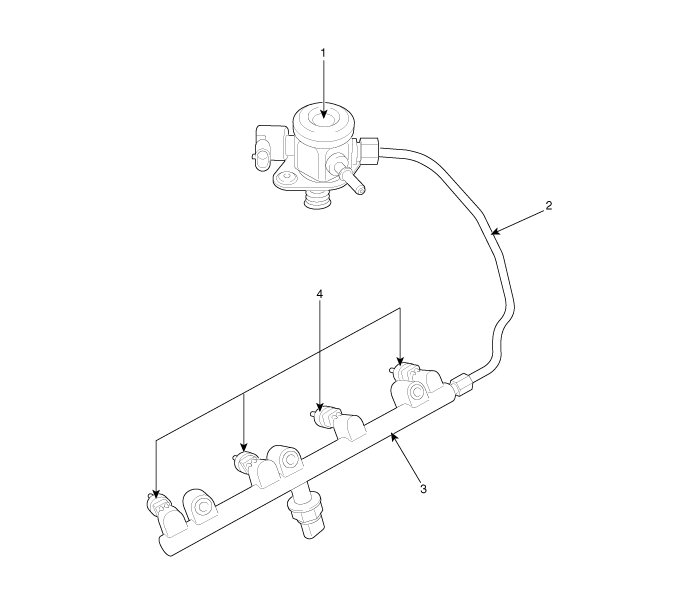

| [High Pressure Fuel Line] |
| 1. High Pressure Fuel Pump 2. High Pressure Fuel Pipe | 3. Delivery Pipe 4. Injector |
In case of removing the high pressure fuel pump, high
pressure fuel pipe, delivery pipe, and injector, there may be injury
caused by leakage of the high pressure fuel. So don’t do any repair
work right after engine stops. |
Repair procedures
Fuel Pressure Test (Low pressure system)
1.
Release the residual pressure in fuel line (Refer to the Fuel
Delivery System - Repair Procedures - "Release Residual Pressure in
Fuel Line").
...
