Component Location |

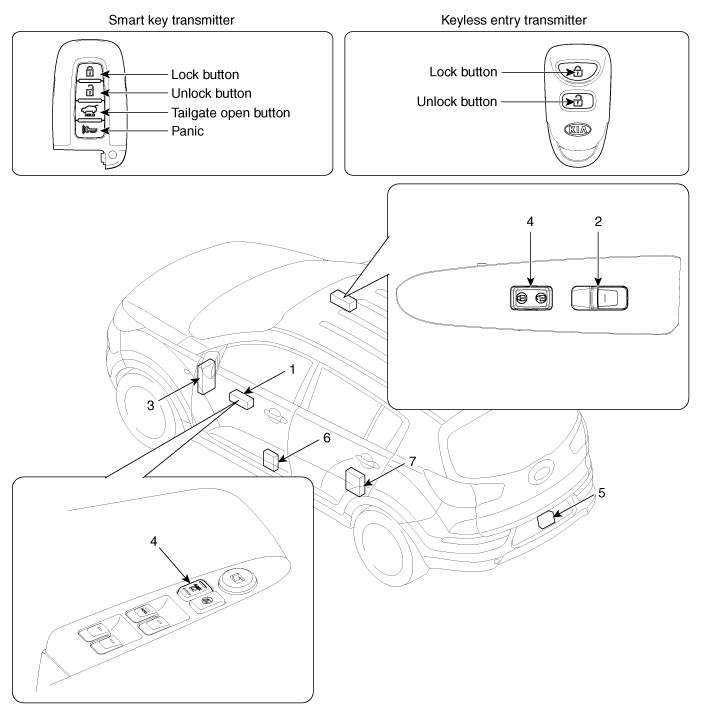

1. Driver power window switch 2. Assist power window switch 3. SJB (Smart Junction Box) 4. Door lock switch | 5. Tailgate lock actuator & switch 6. Front door lock actuator & switch 7. Rear door lock actuator & switch |
Schematic Diagrams
Circuit Diagram - ESC(1)
Circuit Diagram - ESC(2)
Circuit Diagram - ESC(3)
ESC connector input/output
Connector TerminalSpecificationRemarkNoDescription29IGNITION1(+)High level of wake up vol ...
Instrument Cluster: Description and Operation
Description
ECO driving system
This system is designed to encourage eco-driving by providing real-time feedback to the driver.
The ECO indicator light assists you to drive in the most economical ...
